RL46215 – Raasm Pantograph Combination Drainer 115 litre

An air-operated combination drainer with a 115 litre tank with a 50 litre pantograph bowl and suction capability. Waste oil can be collected either by gravity, using the bowl on the floor or in the upper position if vehicles are on a car lift, or by suction through the supplied probes. After depressurisation the drainer works independently without requiring continuous connection to the compressed air system. A kit is available for adapting the drainer to connect to an external pump. Suck hot oil at 70-80°C..





Description

Tank capacity 115 litres
Max draining capacity 97 litres
Bowl Capacity 50 litres
Air pressure for depressurisation 6.5-7 bar
Depressurisation time 3-3.5 min
Noise level 75dB
Suction speed 1.5-2 litre per min
Total suction capacity 85-90 litre
Discharging / suction hose 2 mtr / 2 mtr
Max pressure for draining 0.5 bar
Set of probes RL45560
Packing 4 boxes – 0.5m³
Weight 68kg

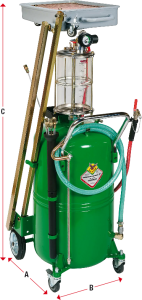

Dimensions (A-B-C) 70cm x 62cm x 156cm
Maximum overall dimension 255cm

Caution: do not suck brake fluids, fuels, flammable or corrosive liquids

Collection Basin

Comes complete with protection screen / filter splash guard and support base for filter
Tank with antisplash plates

Example of Use under a lorry

Detail-suction-drainer-Permex_Raasm

Emptying the tank

To empty the tank when depressurised, open the bowl/tank connection cock and in a few seconds the oil will be sucked in the tank
The air pressure for correct depressurisation is between 6.5-7 Bar

Using the Cantilever

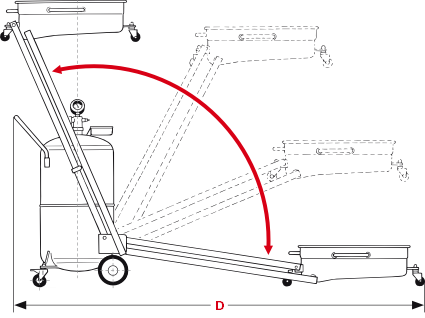

The collection basin can be placed on the floor or raised under a lift by the cantilever arms
